An educational kit designed to teach the fundamentals of kinematics and dynamics. The kit is intended to accompany the course ME3460: Robot Dynamics & Control at Northeastern University. The kit is a physical representation of the final project, which is currently done purely through MATLAB simulation.

Kit Design

The robot is a 3-link planar manipulator with 3 degrees of freedom. The end effector is a simple gripper that can grab small objects.

The entire kit is composed of 3D printed parts, and off-the-shelf hardware/electronics. Students can assemble the kit without any soldering and with minimal tools.

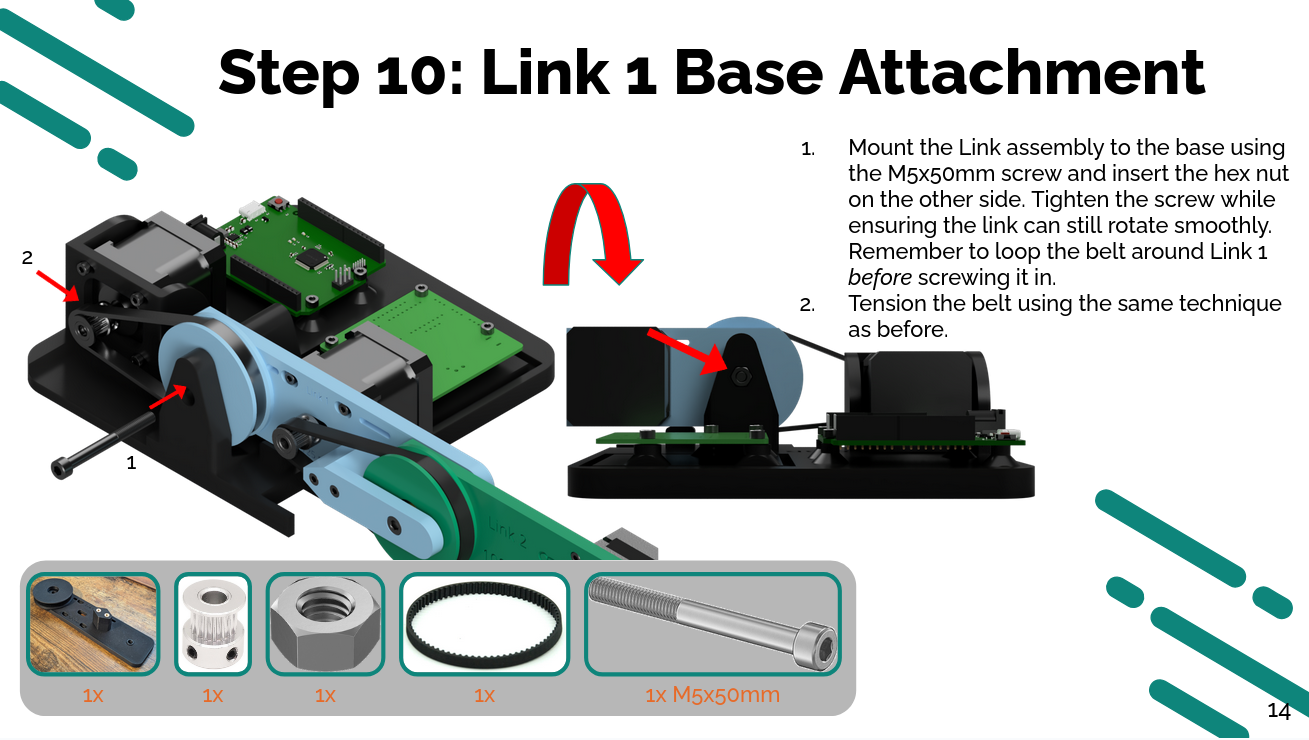

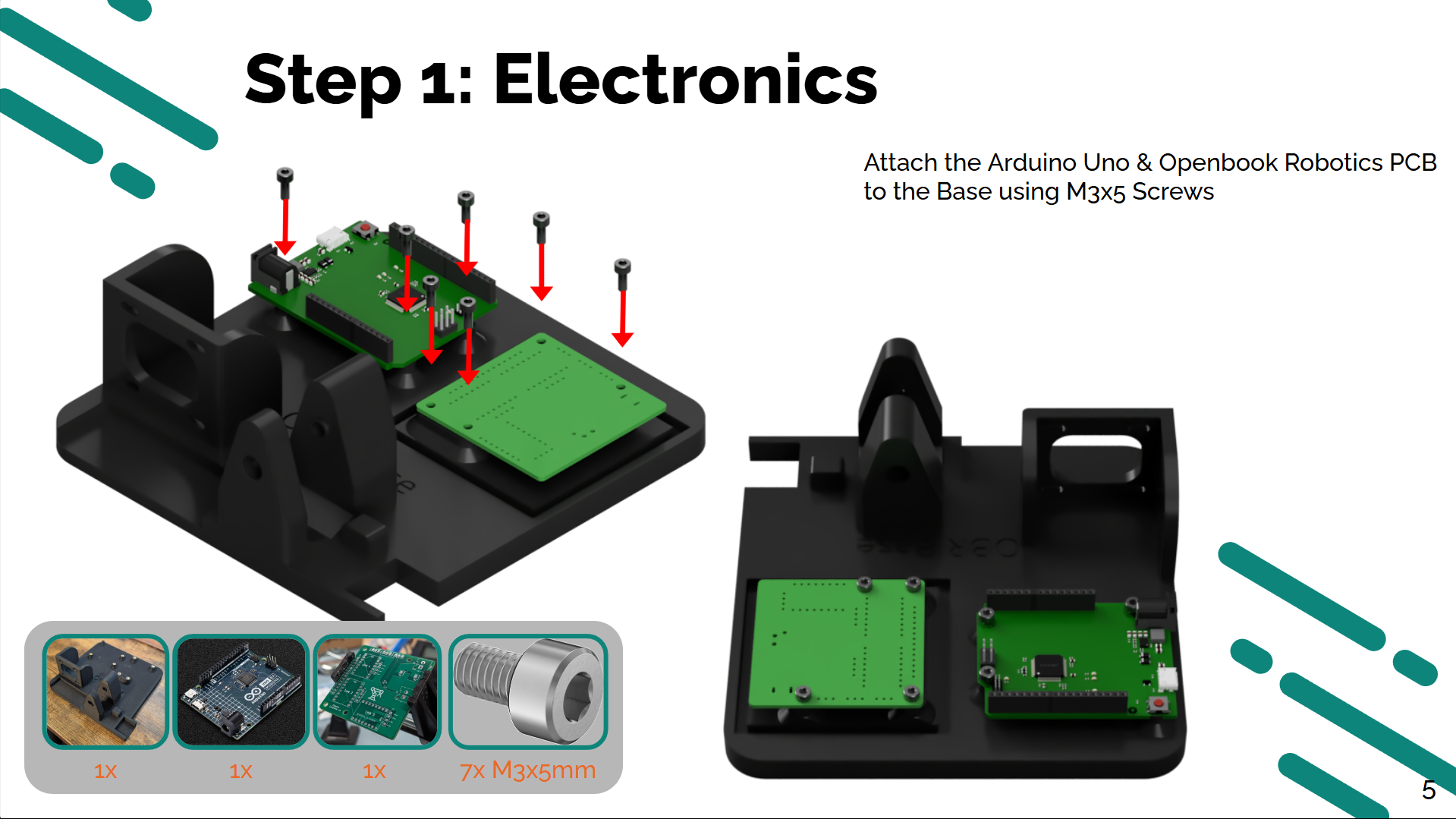

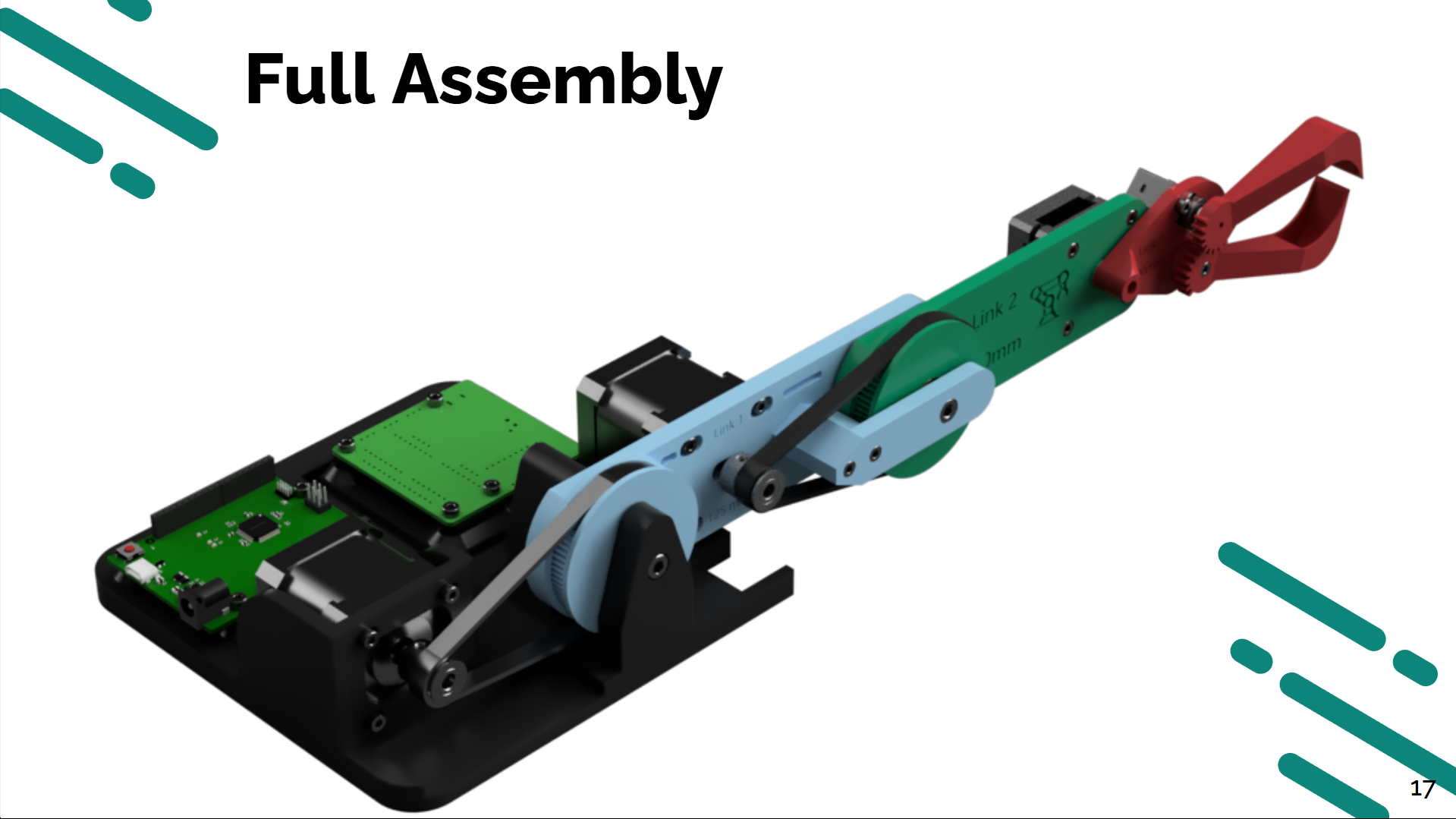

First Step of Instructions PCB Instructions Base Assembly Full Assembly

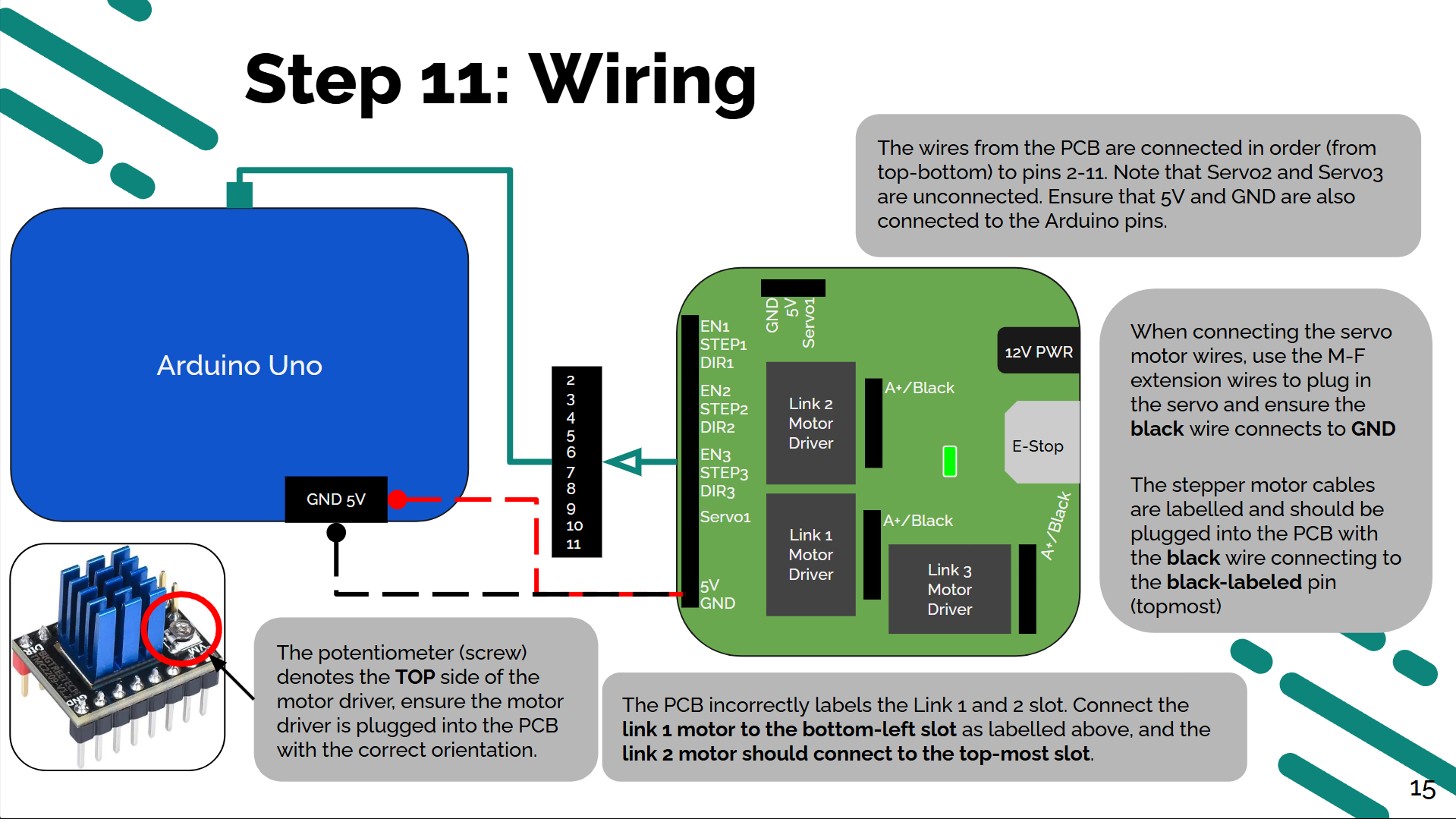

The instructions are laid out in simple steps, akin to LEGO instructions. A custom PCB was developed to simplify the wiring process and off the shelf stepper motors and drivers were used for easy integration with the Arduino microcontroller.

Students Building Kit

Software

In order to control the robot arm, a custom library was written in C++ to handle the microstepping. The library followed the same technique as the AccelStepper library to enable concurrent motion of multiple motors at a time in addition to applying acceleration and velocity profiles. A custom library meant students could easily write and implement their own motion profiles without having to deal with the hardware specifics.

void LinkStepperMotor::computeNewPulseInterval() {
	// Acceleration curve is split into 3 parts: acceleration, steady-state, deceleration
	int totalSteps = abs(this->targetPosition - this->previousTargetPosition);
	int stepsRemaining = this->getStepsRemaining();
	int stepsCompleted = totalSteps - stepsRemaining;
	int n1 = totalSteps / 3;
	int n2 = 2 * n1;
	uint16_t speedSPS = this->currentSpeedSPS;
	// Determine which range we are in to apply the correct part of the acceleration curve
	if (stepsCompleted <= n1) {
		// Acceleration
		// a(n) = k * n1 + a0
		// v(n) = 0.5 * k * n^2 + a0 * n + v0
		speedSPS = (0.5f * this->accelerationRate * pow(stepsCompleted, 2)) + (this->initialAcceleration * stepsCompleted) + this->initialSpeedSPS;
	} else if (stepsCompleted >= n1 && stepsCompleted <= n2) {
		// Steady-state
		// a(n) = a_max = k * n1 + a0
		// v(n) = (k * n1 + a0) * n - 0.5 * k * n1^2 + v0
		speedSPS = ((this->accelerationRate * n1 + this->initialAcceleration) * stepsCompleted) - (0.5f * this->accelerationRate * pow(n1, 2)) + this->initialSpeedSPS;
	} else { // (stepsCompleted >= n2)
		// Deceleration
		// a(n) = -k * n + k * n2 + a_max
		// v(n) = -0.5 * k * n^2 + (k * n1 + k * n2 + a0) * n - 0.5 * k * (n1^2 + n2^2) + v0
		speedSPS = (-0.5f * this->accelerationRate * pow(stepsCompleted, 2))
			+ (this->accelerationRate * n1 + this->accelerationRate * n2 + this->initialAcceleration) * stepsCompleted
			- (0.5f * this->accelerationRate * (pow(n1, 2) + pow(n2, 2)))
			+ this->initialSpeedSPS;
	}
	this->setSpeedSPS(speedSPS);
}
