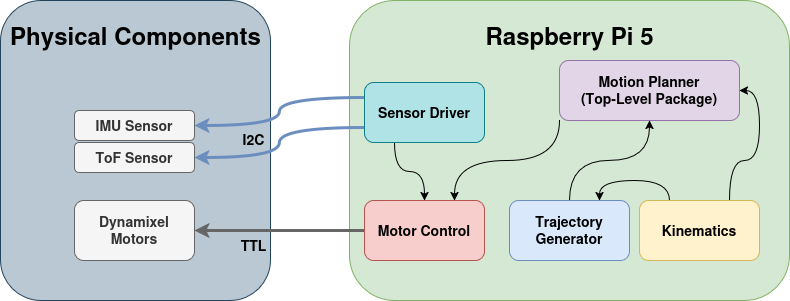

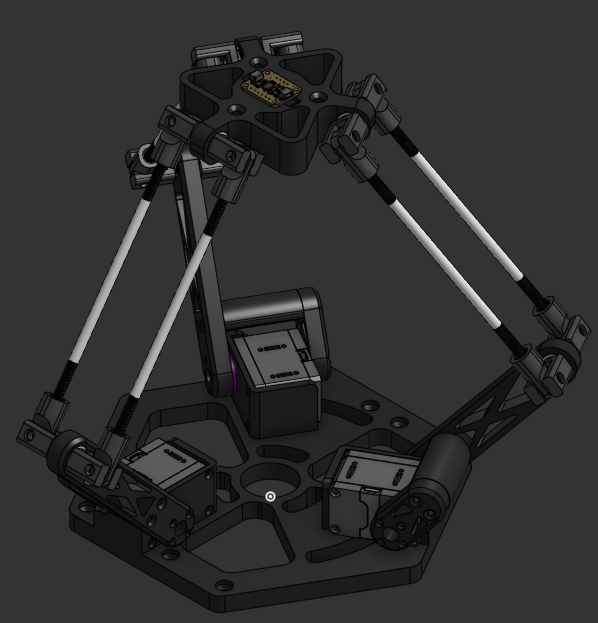

Open Source Delta Robot

// this->AL = Active Link Length [mm]
// this->PL = Passive Link Length [mm]
// this->SB = Base Side Length [mm]
// this->SP = Platform (EE) Side Length [mm]

const float sqrt3 = sqrt(3.0);
const float sin120 = sqrt3 / 2.0;
constexpr float cos120 = -0.5;
const float tan60 = sqrt3;
constexpr float sin30 = 0.5;
const float tan30 = 1 / sqrt3;

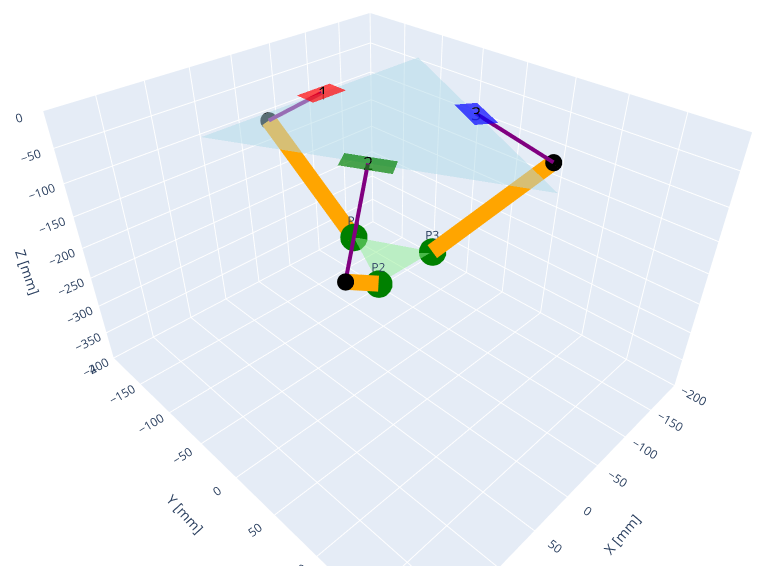

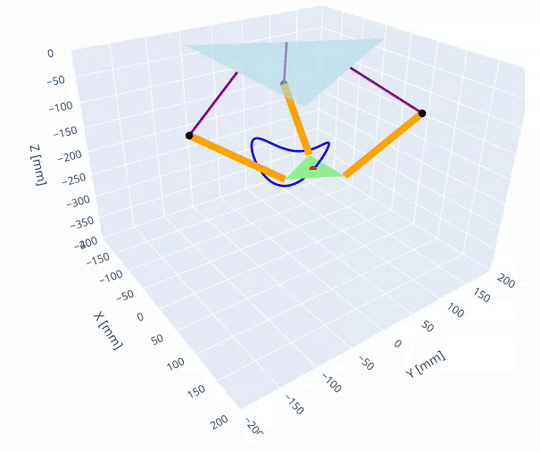

void DeltaKinematics::forwardKinematics(const std::shared_ptr<DeltaFK::Request> request, std::shared_ptr<DeltaFK::Response> response) {
    // Locally save the request data (joint angles)
    float theta1 = request->joint_angles.theta1;
    float theta2 = request->joint_angles.theta2;
    float theta3 = request->joint_angles.theta3;
    float x = 0.0;
    float y = 0.0;
    float z = 0.0;

    float t = (this->SB - this->SP) * tan30 / 2;
    float y1 = -(t + this->AL * cos(theta1));
    float z1 = -this->AL * sin(theta1);
    float y2 = (t + this->AL * cos(theta2)) * sin30;
    float x2 = y2 * tan60;
    float z2 = -this->AL * sin(theta2);
    float y3 = (t + this->AL * cos(theta3)) * sin30;
    float x3 = -y3 * tan60;
    float z3 = -this->AL * sin(theta3);
    float dnm = (y2 - y1) * x3 - (y3 - y1) * x2;
    float w1 = y1 * y1 + z1 * z1;
    float w2 = x2 * x2 + y2 * y2 + z2 * z2;
    float w3 = x3 * x3 + y3 * y3 + z3 * z3;

    // x = (a1*z + b1)/dnm
    float a1 = (z2 - z1) * (y3 - y1) - (z3 - z1) * (y2 - y1);
    float b1 = -((w2 - w1) * (y3 - y1) - (w3 - w1) * (y2 - y1)) / 2.0;

    // y = (a2*z + b2)/dnm;
    float a2 = -(z2 - z1) * x3 + (z3 - z1) * x2;
    float b2 = ((w2 - w1) * x3 - (w3 - w1) * x2) / 2.0;

    // a*z^2 + b*z + c = 0
    float a = a1 * a1 + a2 * a2 + dnm * dnm;
    float b = 2 * (a1 * b1 + a2 * (b2 - y1 * dnm) - z1 * dnm * dnm);
    float c = (b2 - y1 * dnm) * (b2 - y1 * dnm) + b1 * b1 + dnm * dnm * (z1 * z1 - this->PL * this->PL);

    // discriminant
    float d = b * b - (float)4.0 * a * c;
    if (d < 0) {
      RCLCPP_ERROR(this->get_logger(), "DeltaFK: Invalid Configuration (%f, %f, %f) [rad]", theta1, theta2, theta3);
    } else {
      z = (-b + sqrt(d)) / (2*a);
      x = (a1 * z + b1) / dnm;
      y = (a2 * z + b2) / dnm;
    }

    // Update the response data (end effector position)
    response->x = x; // [mm]
    response->y = y; // [mm]
    response->z = z; // [mm]
  }

  int DeltaKinematics::deltaFK_AngleYZ(float x0, float y0, float z0, float& theta) {
    float y1 = -0.5 * tan30 * this->SB; // Half base * tan(30)
    y0 -= 0.5 * tan30 * this->SP;    // shift center to edge
    // z = a + b*y
    float a = (x0 * x0 + y0 * y0 + z0 * z0 + this->AL * this->AL - this->PL * this->PL - y1 * y1) / (2 * z0);
    float b = (y1 - y0) / z0;
    // discriminant
    float d = -(a + b * y1) * (a + b * y1) + this->AL * (b * b * this->AL + this->AL);
    if (d < 0) return -1; // non-existing point
    float yj = (y1 - a * b - sqrt(d)) / (b * b + 1); // choosing outer point
    float zj = a + b * yj;
    theta = atan(-zj / (y1 - yj)) + ((yj > y1) ? M_PI : 0.0);
    return 0;
  }

  void DeltaKinematics::inverseKinematics(const std::shared_ptr<DeltaIK::Request> request, std::shared_ptr<DeltaIK::Response> response) {
    // Locally save the request data (end effector position)
    float x = request->x; // [mm]
    float y = request->y; // [mm]
    float z = request->z; // [mm]
    float theta1 = 0.0;
    float theta2 = 0.0;
    float theta3 = 0.0;

    int status = this->deltaFK_AngleYZ(x, y, z, theta1);
    if (status == 0) {
      status = this->deltaFK_AngleYZ(x * cos120 + y * sin120, y * cos120 - x * sin120, z, theta2);  // rotate coords to +120 deg
    } else {
      RCLCPP_ERROR(this->get_logger(), "DeltaIK: Non-existing point (%f, %f, %f) [mm]", x, y, z);
    }
    if (status == 0) {
      status = this->deltaFK_AngleYZ(x * cos120 - y * sin120, y * cos120 + x * sin120, z, theta3);  // rotate coords to -120 deg
    } else {
      RCLCPP_ERROR(this->get_logger(), "DeltaIK: Non-existing point (%f, %f, %f) [mm]", x, y, z);
    }

    // Update the response data (joint angles)
    response->joint_angles.theta1 = theta1; // [rad]
    response->joint_angles.theta2 = theta2; // [rad]
    response->joint_angles.theta3 = theta3; // [rad]
  }

std::pair<std::vector<double>, std::vector<double>> DeltaKinematics::calcAuxAngles(double theta1, double theta2, double theta3) {
  // First determine the end effector position using FK
  Point position = this->deltaFK(theta1, theta2, theta3);

  const double UP = (sqrt3 / 3) * this->SP;
  const Eigen::Vector3d P = {position.x, position.y, position.z};
  const Eigen::Vector3d D = {UP - this->AL, 0, 0};

  Eigen::Matrix3d C;
  for (int i = 0; i < 3; ++i) {
    double phi_i = this->phi[i];
    Eigen::Matrix3d R;
    R << std::cos(phi_i), std::sin(phi_i), 0,
      -std::sin(phi_i), std::cos(phi_i), 0,
      0, 0, 1;
    Eigen::Vector3d c_i = R * P + D;
    // Set the i-th column of C to c_i.
    C.col(i) = c_i;
  }
  double C_x2 = C(0, 1);
  double C_y2 = C(1, 1);
  double C_z2 = C(2, 1);
  double C_x3 = C(0, 2);
  double C_y3 = C(1, 2);
  double C_z3 = C(2, 2);
  // C_squared = c_xi^2 + c_yi^2 + c_zi^2
  double C_sqrd_2 = C_x2 * C_x2 + C_y2 * C_y2 + C_z2 * C_z2;
  double C_sqrd_3 = C_x3 * C_x3 + C_y3 * C_y3 + C_z3 * C_z3;
  // theta_3i = arccos(C_yi / PL)
  double t32 = acos(C_y2 / this->PL);
  double t33 = acos(C_y3 / this->PL);
  // k_numerator = c_xi ^ 2 + c_yi ^ 2 + c_zi ^ 2 - L ^ 2 - ELL ^ 2
  // k_denominator = 2 * L * ELL * sin(theta_3i)
  // theta_2i = arccos(k_numerator / k_denominator)
  double t22_numerator = C_sqrd_2 - this->AL * this->AL - this->PL * this->PL;
  double t22_denominator = 2 * this->AL * this->PL * sin(t32);
  double t23_numerator = C_sqrd_3 - this->AL * this->AL - this->PL * this->PL;
  double t23_denominator = 2 * this->AL * this->PL * sin(t33);
  double t22 = acos(t22_numerator / t22_denominator);
  double t23 = acos(t23_numerator / t23_denominator);
  // theta_1i is the actuated angles which were passed into the function
  // We only need to return the auxiliary angles
  return std::make_pair(std::vector<double>{theta2, t22, t23}, std::vector<double>{theta3, t32, t33});
}

Eigen::Matrix3d DeltaKinematics::calcJacobian(double theta1, double theta2, double theta3) {
  // The Jacobian matrix has 2 components: JTheta and Jp
  // Since this Jacobian will be used to compute the joint velocities, we need the inverse of JTheta
  // Jp * p_dot = JTheta * theta_dot -> theta_dot = JTheta_inv * Jp * p_dot

  // Obtain auxiliary angles
  auto aux_angles = this->calcAuxAngles(theta1, theta2, theta3);
  const std::vector<double> t1 = {theta1, theta2, theta3};
  const std::vector<double> t2 = aux_angles.first;
  const std::vector<double> t3 = aux_angles.second;
  double t22 = t2[1];
  double t23 = t2[2];
  double t32 = t3[1];
  double t33 = t3[2];

  // Jp Calculation
  auto J_ix = [this, &t1, &t2, &t3](int i) -> double {
    return sin(t3[i]) * cos(t2[i] + t1[i]) * cos(this->phi[i]) + cos(t3[i]) * sin(this->phi[i]);
  };
  auto J_iy = [this, &t1, &t2, &t3](int i) -> double {
    return -sin(t3[i]) * cos(t2[i] + t1[i]) * sin(this->phi[i]) + cos(t3[i]) * cos(this->phi[i]);
  };
  auto J_iz = [this, &t1, &t2, &t3](int i) -> double {
    return sin(t3[i]) * sin(t2[i] + t1[i]);
  };
  Eigen::Matrix3d Jp;
  for (int i = 0; i < 3; ++i) {
    Jp(i, 0) = J_ix(i);
    Jp(i, 1) = J_iy(i);
    Jp(i, 2) = J_iz(i);
  }

  // JTheta Calculation
  Eigen::Matrix3d JTheta;
  // Populate the diagonals with AL*sin(t2[i])*sin(t3[i])
  JTheta(0, 0) = this->AL * sin(theta2) * sin(theta3);
  JTheta(1, 1) = this->AL * sin(t22) * sin(t23);
  JTheta(2, 2) = this->AL * sin(t32) * sin(t33);

  // Invert JTheta
  Eigen::Matrix3d JTheta_inv = JTheta.inverse();
  return JTheta_inv * Jp;
}

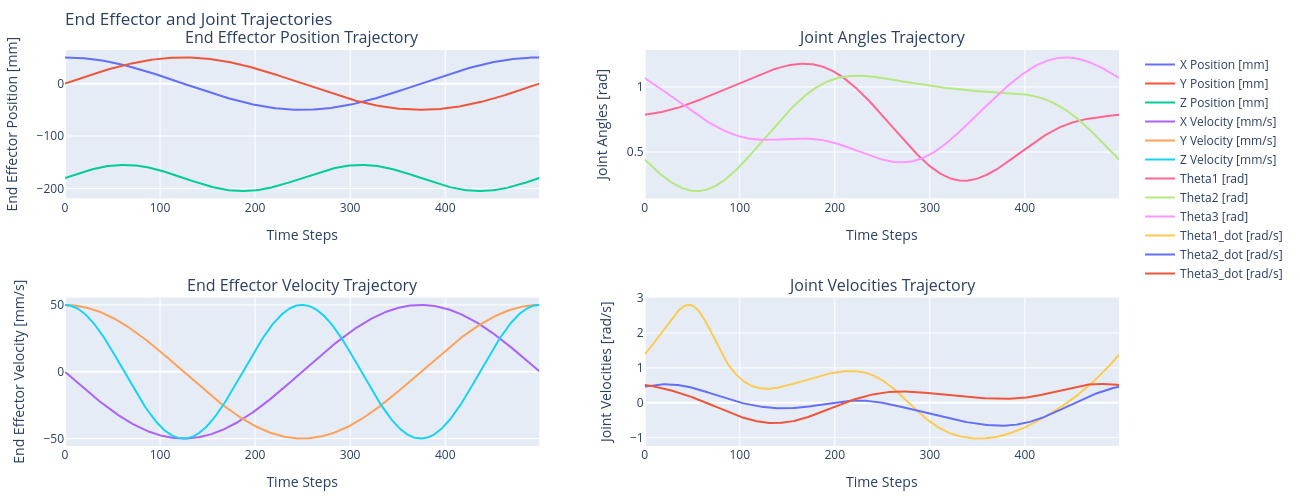

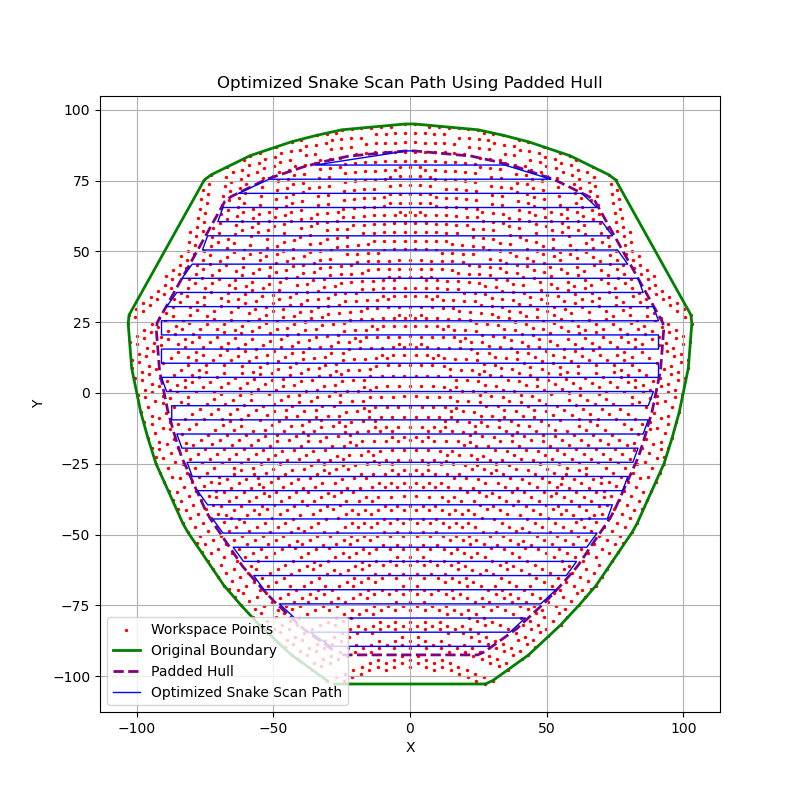

DeltaJointVels DeltaKinematics::calcThetaDot(double theta1, double theta2, double theta3, double x_dot, double y_dot, double z_dot) {
  Eigen::Matrix3d J = this->calcJacobian(theta1, theta2, theta3);
  Eigen::Vector3d p_dot(x_dot, y_dot, z_dot);
  Eigen::Vector3d theta_dot = J * p_dot;
  DeltaJointVels joint_vels;
  joint_vels.theta1_vel = theta_dot(0);
  joint_vels.theta2_vel = theta_dot(1);
  joint_vels.theta3_vel = theta_dot(2);
  return joint_vels;
}

std::vector<EEVelocity> DeltaKinematics::computeGradient(const std::vector<Point>& position_data, double dt) {
  size_t n = position_data.size();
  std::vector<EEVelocity> velocities(n, {0.0, 0.0, 0.0});
  if (n == 0 || n == 1) return velocities;

  // Use forward difference for the first point
  velocities[0].x_vel = (position_data[1].x - position_data[0].x) / dt;
  velocities[0].y_vel = (position_data[1].y - position_data[0].y) / dt;
  velocities[0].z_vel = (position_data[1].z - position_data[0].z) / dt;

  // Use central difference for interior points
  for (size_t i = 1; i < n - 1; ++i) {
    velocities[i].x_vel = (position_data[i + 1].x - position_data[i - 1].x) / (2 * dt);
    velocities[i].y_vel = (position_data[i + 1].y - position_data[i - 1].y) / (2 * dt);
    velocities[i].z_vel = (position_data[i + 1].z - position_data[i - 1].z) / (2 * dt);
  }

  // Use backward difference for the last point
  velocities[n - 1].x_vel = (position_data[n - 1].x - position_data[n - 2].x) / dt;
  velocities[n - 1].y_vel = (position_data[n - 1].y - position_data[n - 2].y) / dt;
  velocities[n - 1].z_vel = (position_data[n - 1].z - position_data[n - 2].z) / dt;

  return velocities;
}

  /**

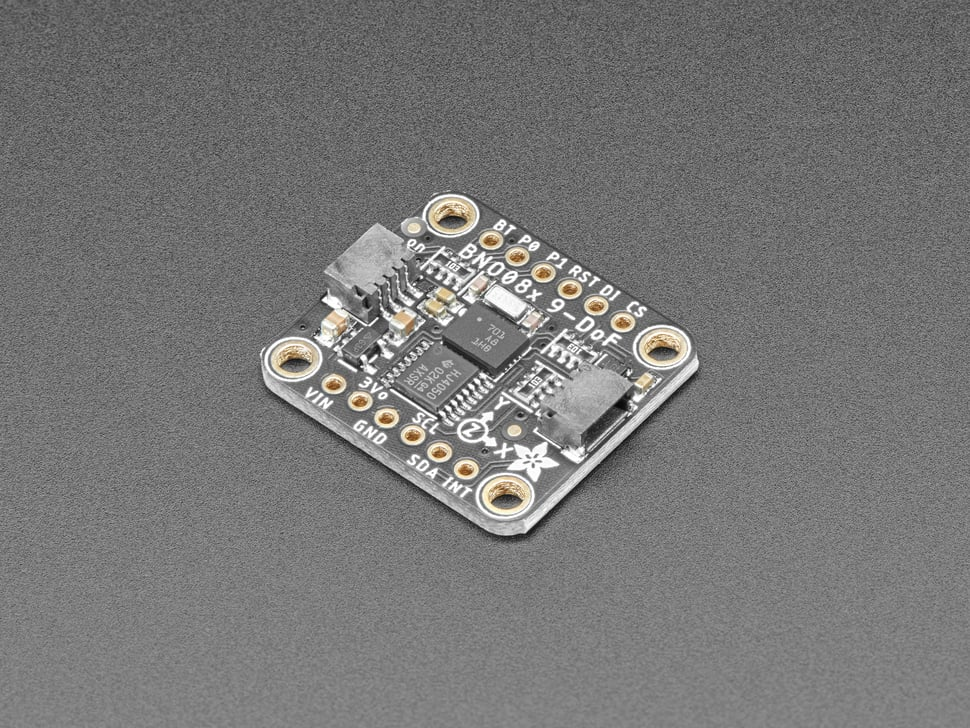

  * @struct AlphaBetaFilter
  * @brief Struct for storing alpha-beta filter parameters and state.
  *
  * This struct contains the parameters and state variables for an alpha-beta filter,
  * which is used to filter sensor data.
  */
  typedef struct {
    /**
    * @brief Alpha value for filter
    *
    * @note Determines how much of the residual error is used to update the estimate.
    *
    */
    float alpha;

    /**
    * @brief Beta value for filter
    *
    * @note Determines how much of the residual error is used to update the rate estimate.
    */
    float beta;
    float estimate; // Current estimate
    float rateEstimate; // Current rate estimate
    float previousEstimate = 0; // Previous estimate
    float previousRateEstimate = 0; // Previous rate estimate
    rclcpp::Time prevMeasureTime = rclcpp::Time(0); // Time of the previous measurement
  } AlphaBetaFilter;

  void KalmanFilter::applyAlphaBetaFilter(float z, AlphaBetaFilter& filter) {
    // Handle first measurement case
    if (filter.previousEstimate == 0 && filter.previousRateEstimate == 0) {
      filter.prevMeasureTime = this->now();
      filter.previousEstimate = z;
      filter.estimate = z; // Use current measurement as the initial estimate
      return; // Skip prediction for first measurement
    }

    // Update Timestep and save the previous measurement time
    float dt = (this->now() - filter.prevMeasureTime).seconds();
    filter.prevMeasureTime = this->now();

    // Prediction Step
    filter.estimate = filter.previousEstimate + (filter.rateEstimate * dt);

    // Update Step
    float residual = z - filter.estimate;
    filter.estimate += filter.alpha * residual;
    filter.rateEstimate += filter.beta * (residual / dt);

    // Update the filter state
    filter.previousRateEstimate = filter.rateEstimate;
    filter.previousEstimate = filter.estimate;
  }

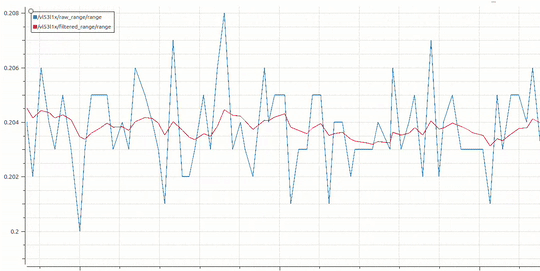

  void KalmanFilter::rangeCallback(const Range::SharedPtr msg) {

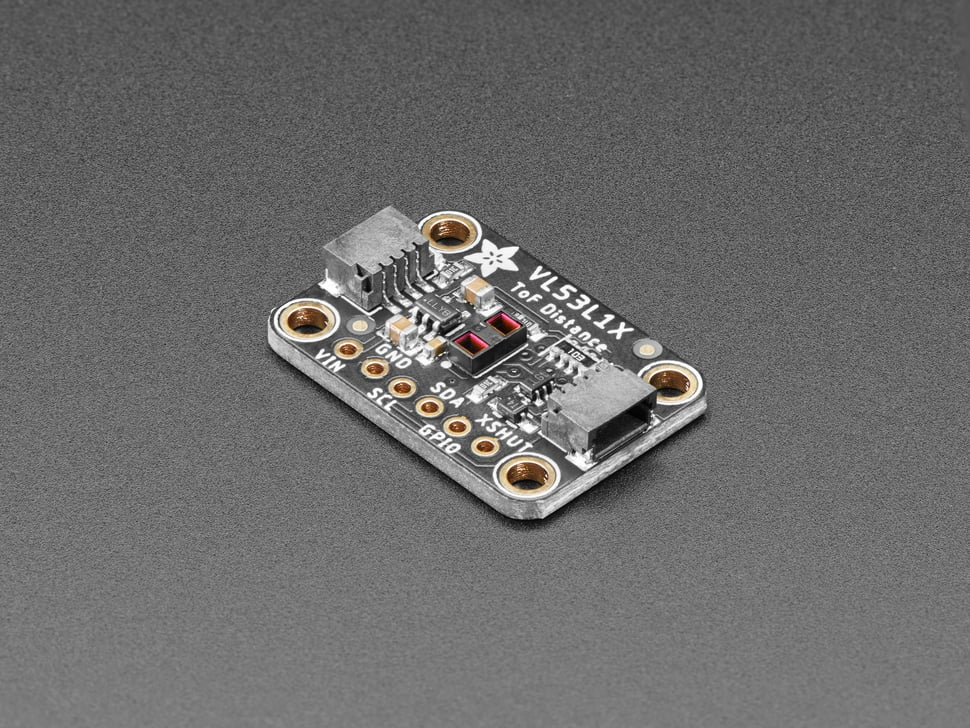

    // Alpha-Beta Filter for Range Data from Time-of-Flight Sensor
    this->applyAlphaBetaFilter(msg->range, this->rangeFilter);

    // Publish the filtered range value
    auto filtered_msg = std::make_shared<Range>(*msg);
    filtered_msg->range = this->rangeFilter.estimate; // Update the range value to the filtered value
    filtered_msg->header.stamp = this->now(); // Update the timestamp to the current time
    // Only publish the filtered range if it is within the min and max range values
    if ((filtered_msg->range >= filtered_msg->min_range) && (filtered_msg->range <= filtered_msg->max_range)) {
      this->filtered_range_pub->publish(*filtered_msg);
    }
}
